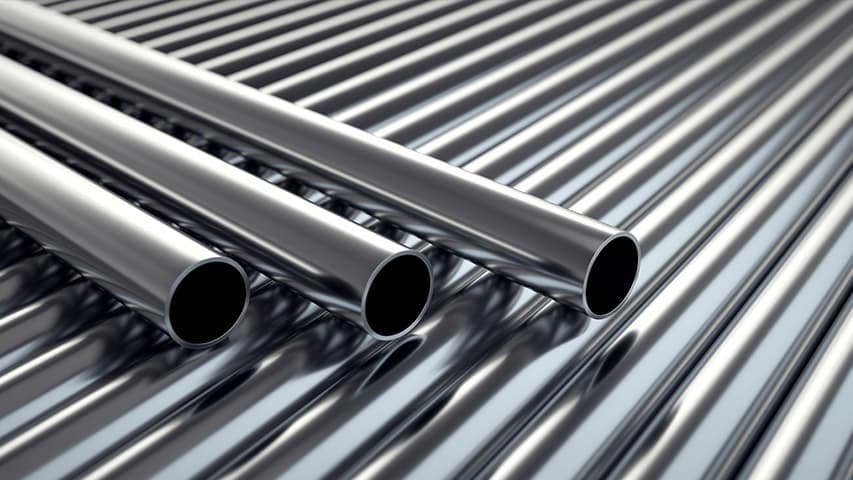

Pipes

Seamless and welded pipes in carbon, stainless, alloy, and duplex steel.

Seamless Pipes

Hot-rolled and cold-drawn seamless pipes offering superior strength and pressure resistance without weld seams.

Carbon Steel / Low Temp

Grades: A106B, API 5L, A53B, A333, S355J2H
Sizes: 1/2" - 48"
Schedule / Wall Thickness: SCH 40, 80, 160, XXS
Standard: ASTM A106, API 5L, ASTM A333

Stainless Steel

Grades: TP304, TP304L, TP316, TP316L, TP347H, 310S
Sizes: 1/4" - 24"
Schedule / Wall Thickness: SCH 10S, 40S, 80S
Standard: ASTM A312

Alloy Steel

Grades: P5, P9, P11, P22, P91
Sizes: 1/2" - 24"
Schedule / Wall Thickness: SCH 40, 80, 160, XXS
Standard: ASTM A335

Duplex Steel

Grades: S31803 / 2205, S32750 / 2507, S32205
Sizes: 1/2" - 24"
Schedule / Wall Thickness: SCH 10S, 40S, 80S
Standard: ASTM A790

Material	Grades	Sizes	Schedule / Wall Thickness	Standard
Carbon Steel / Low Temp	A106B, API 5L, A53B, A333, S355J2H	1/2" - 48"	SCH 40, 80, 160, XXS	ASTM A106, API 5L, ASTM A333
Stainless Steel	TP304, TP304L, TP316, TP316L, TP347H, 310S	1/4" - 24"	SCH 10S, 40S, 80S	ASTM A312
Alloy Steel	P5, P9, P11, P22, P91	1/2" - 24"	SCH 40, 80, 160, XXS	ASTM A335
Duplex Steel	S31803 / 2205, S32750 / 2507, S32205	1/2" - 24"	SCH 10S, 40S, 80S	ASTM A790

Available Lengths

12m

Random Length

Cut-to-Length available

End Finish

Plain End

Beveled End

Threaded

Coating Options

Bare

Black Painted

Galvanized

Epoxy Coated

Welded Pipes (ERW)

Electric Resistance Welded pipes offering excellent quality and cost-effectiveness for various applications.

Carbon Steel / Low Temp

Grades: A106B, API 5L, A53B, A333, S355J2H
Sizes: 1/2" - 48"
Schedule / Wall Thickness: SCH 20, 30, 40, STD
Standard: ASTM A106, API 5L, ASTM A333

Stainless Steel

Grades: TP304, TP304L, TP316, TP316L, TP347H, 310S
Sizes: 1/4" - 24"
Schedule / Wall Thickness: SCH 10S, 40S
Standard: ASTM A312

Alloy Steel

Grades: P5, P9, P11, P22, P91
Sizes: 1/2" - 24"
Schedule / Wall Thickness: SCH 40, 80
Standard: ASTM A335

Duplex Steel

Grades: S31803 / 2205, S32750 / 2507, S32205
Sizes: 1/2" - 24"
Schedule / Wall Thickness: SCH 10S, 40S
Standard: ASTM A790

Material	Grades	Sizes	Schedule / Wall Thickness	Standard
Carbon Steel / Low Temp	A106B, API 5L, A53B, A333, S355J2H	1/2" - 48"	SCH 20, 30, 40, STD	ASTM A106, API 5L, ASTM A333
Stainless Steel	TP304, TP304L, TP316, TP316L, TP347H, 310S	1/4" - 24"	SCH 10S, 40S	ASTM A312
Alloy Steel	P5, P9, P11, P22, P91	1/2" - 24"	SCH 40, 80	ASTM A335
Duplex Steel	S31803 / 2205, S32750 / 2507, S32205	1/2" - 24"	SCH 10S, 40S	ASTM A790

Available Lengths

12m

Random Length

End Finish

Plain End

Beveled End

Coating Options

Bare

Black Painted

Galvanized

Size Availability Matrix

Select a grade to view available OD × wall thickness combinations. Green indicates ready availability; amber sizes are available on request with lead time. Click any cell to calculate weight and pressure.

AvailableOn RequestNot Available

		WALL THICKNESS (mm)
OD	NPS	2.8	3.2	3.7	4	4.8	5.2	5.5	6	6.4	7	7.9	8.4	8.7	9.5	10.3	11	12.7	14.3	15.9	17.5	19.1	20.6	22.2	25.4
21.3	1/2"
26.7	3/4"
33.4	1"
42.2	1 1/4"
48.3	1 1/2"
60.3	2"
73	2 1/2"
88.9	3"
101.6	3 1/2"
114.3	4"
141.3	5"
168.3	6"
219.1	8"
273.1	10"
323.9	12"
355.6	14"
406.4	16"
457.2	18"
508	20"
609.6	24"

Hover over cells to see calculated weight per meter. Availability subject to confirmation at time of inquiry.

Common schedule equivalents — SCH 40: 6" = 7.11mm WT, 8" = 8.18mm WT, 10" = 9.27mm WT | SCH 80: 6" = 10.97mm WT, 8" = 12.70mm WT, 10" = 15.09mm WT

Weight & Pressure Calculator

Calculate pipe weight and maximum working pressure based on your specifications.

Outside Diameter

Wall Thickness

Grade

WEIGHT / METER

28.26

kg/m

MAX PRESSURE

14.7

MPa

PER 6M

169.6 kg

PER 12M

339.1 kg

PRESSURE (PSI)

2,126 psi

SCHEDULE

SCH 40

INTERNAL DIA.

154.1 mm

STEEL AREA

36.00 cm²

Calculations based on Barlow's formula with 0.72 design factor per ASME B31.8. For reference only — verify with project engineering specifications.

Open calculator in full page

Applications

Power Generation

High-pressure piping for thermal and nuclear power plants

Oil & Gas

Upstream, midstream, and downstream applications

Petrochemical

Chemical processing and refining operations

Water Treatment

Municipal and industrial water systems

Construction

Structural and mechanical piping systems
